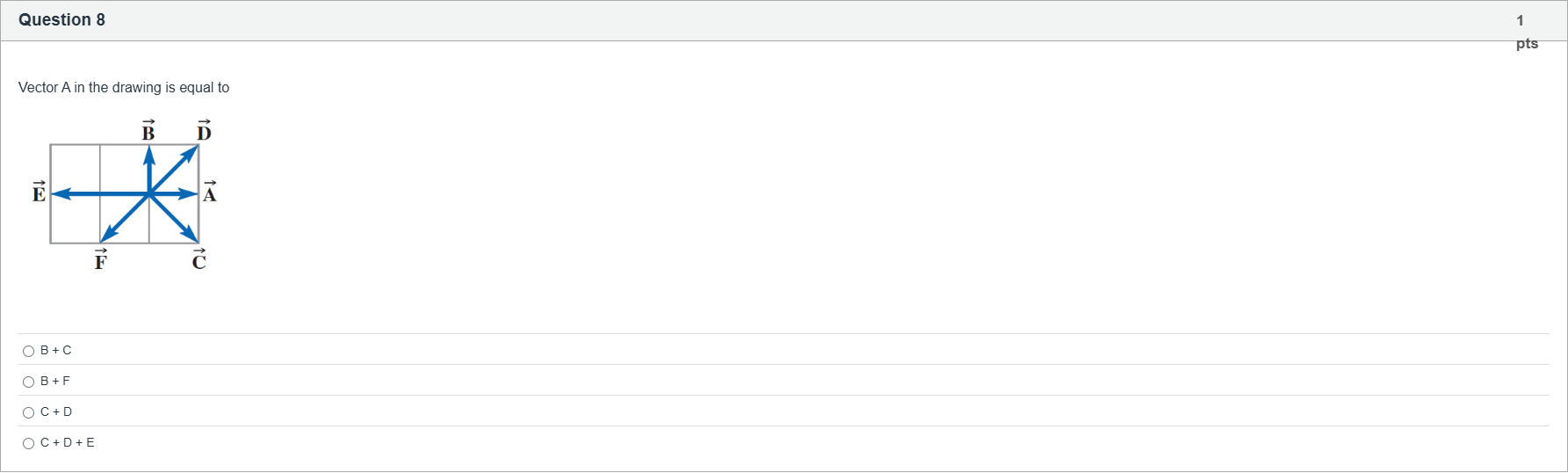

Vector A in the drawing is equal to

Question

BlackTom AI · Accepted Answer

To assess which vector equals Vector A, we must compare how the vectors shown add up when placed tail-to-tail and then combined.
Option 1: B + C. This pair adds a vertical component from B (up) with the diagonal component from C (down-right). If the magnitudes are such that the vertical components cancel, the resultant lies along the horizontal axis to the right, matching Vector A’s direction and likely its magnitude as drawn. This alignment with the diagram explains why B + C is R.
Option 2: B + F. Here we’re adding B (up) with F (left-down). The resulting vector would point toward the left side (since F has a leftward component that dominates the horizontal), which does not align with Vector A’s rightward direction. Therefore this is not A.
Option 3: C + D. C is down-right and D is up-right. Their horizontal components both point to the right, but their vertical components oppose each other. Depending on magnitudes, the vertical parts could cancel, leaving a rightward resultant, or not fully cancel to match A precisely. Since the diagram’s exact magnitudes aren’t given, this option is not as clearly matching A as B + C.
Option 4: C + D + E. This sum includes E, which points left. Adding E shifts the resultant leftward, so the overall direction would deviate from A’s rightward orientation, making this an unlikely match for Vector A.
In summary, the combination that best reproduces the rightward Vector A while accounting for the shown directions is B + C, whereas the other combinations introduce leftward or vertically mismatched components that don’t align with A as drawn.

SPHY001 Practice Quiz - Unit 03 | LA043

Vector A in the drawing is equal to

View Explanation

Log in for full answers

Similar Questions

Vector A in the drawing is equal to

The figure below shows two forces F1 and F2 acting together on an object. Which of the red vectors represents the resultant force F1+F2, in terms of the direction and magnitude?

A student walks 1.0 km east and then 3.0 km south. The student then walks 5.0 km west. The magnitude of the student's displacement is

A student walks 14.4 km east and then 8.3 km north. After that, the student walks 2.3 km east. The magnitude of the student's displacement is

A person walks 454 m East, followed by 337.9 m South and finally 1446.9 m West. What is this person's displacement vector taking reference from the starting position?
