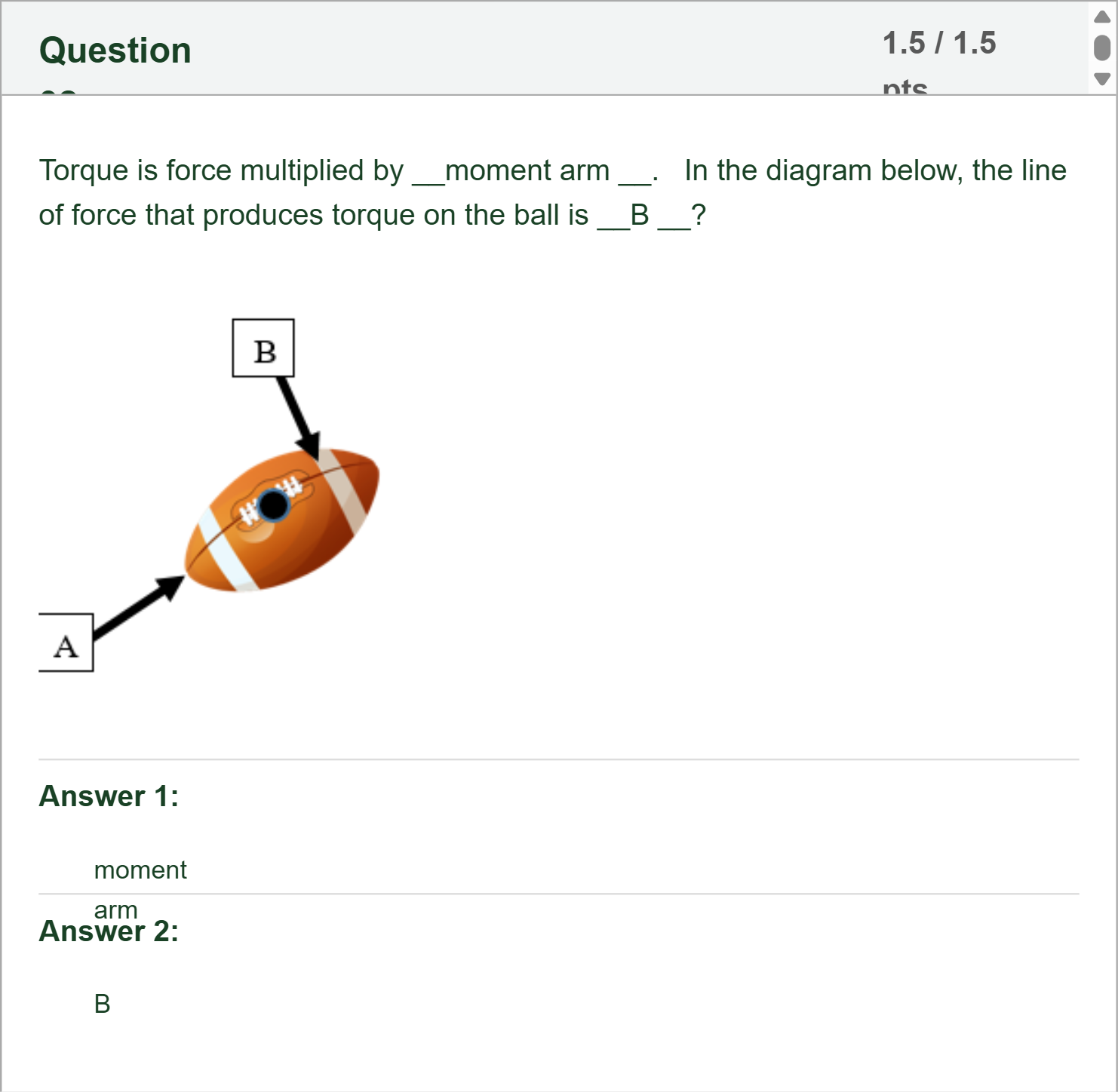

Torque is force multiplied by __moment arm __. In the diagram below, the line of force that produces torque on the ball is __B __?

Question

Torque is force multiplied by __moment arm __.   In the diagram below, the line of force that produces torque on the ball is __B __?

BlackTom AI · Accepted Answer

Question restatement: Torque is force multiplied by __moment arm__. In the diagram below, the line of force that produces torque on the ball is __B __?

Option 1: moment arm
To understand torque, recall that torque = r × F, where r is the position vector from the rotation axis to the line of action of the force, i.e., the moment arm. The longer the moment arm (the perpendicular distance from the axis to the line of action), the larger the torque for a given force. This option correctly identifies the concept that the torque depends on the moment arm rather than the force magnitude alone, and it fits the standard definition in rotational dynamics.

Option 2: B
In the diagram, the force labeled B is directed in such a way that its line of action does not pass through the ball’s center, creating a nonzero perpendicular distance to the axis of rotation. This means B has a finite moment arm and can generate torque on the ball. Conversely, if a force acted along a line that passed through the axis (or center in this simplified diagram), it would produce little or no torque because the moment arm would be zero. Since the question asks which line of force produces torque, B is the line that contributes a turning effect.

Additional nuance on the other option (A):
The force labeled A may appear to be applied along a direction that, in this setup, has a different lever arm relative to the rotation axis. If A’s line of action passed through the axis, its moment arm would be zero and it would not produce torque. If A’s line of action does not pass through the axis, it would also produce torque, but the diagram suggests that B is the force with the clearly defined nonzero moment arm with respect to the center used to illustrate torque.

Summary of reasoning:
- The concept of torque relies on the moment arm (the perpendicular distance from the rotation axis to the line of action). This is why option 'moment arm' is central to the definition.
- The specific force that produces torque in the diagram is the one whose line of action has a nonzero moment arm relative to the axis; in this figure, that is force B, making it the line of action responsible for creating torque on the ball.
