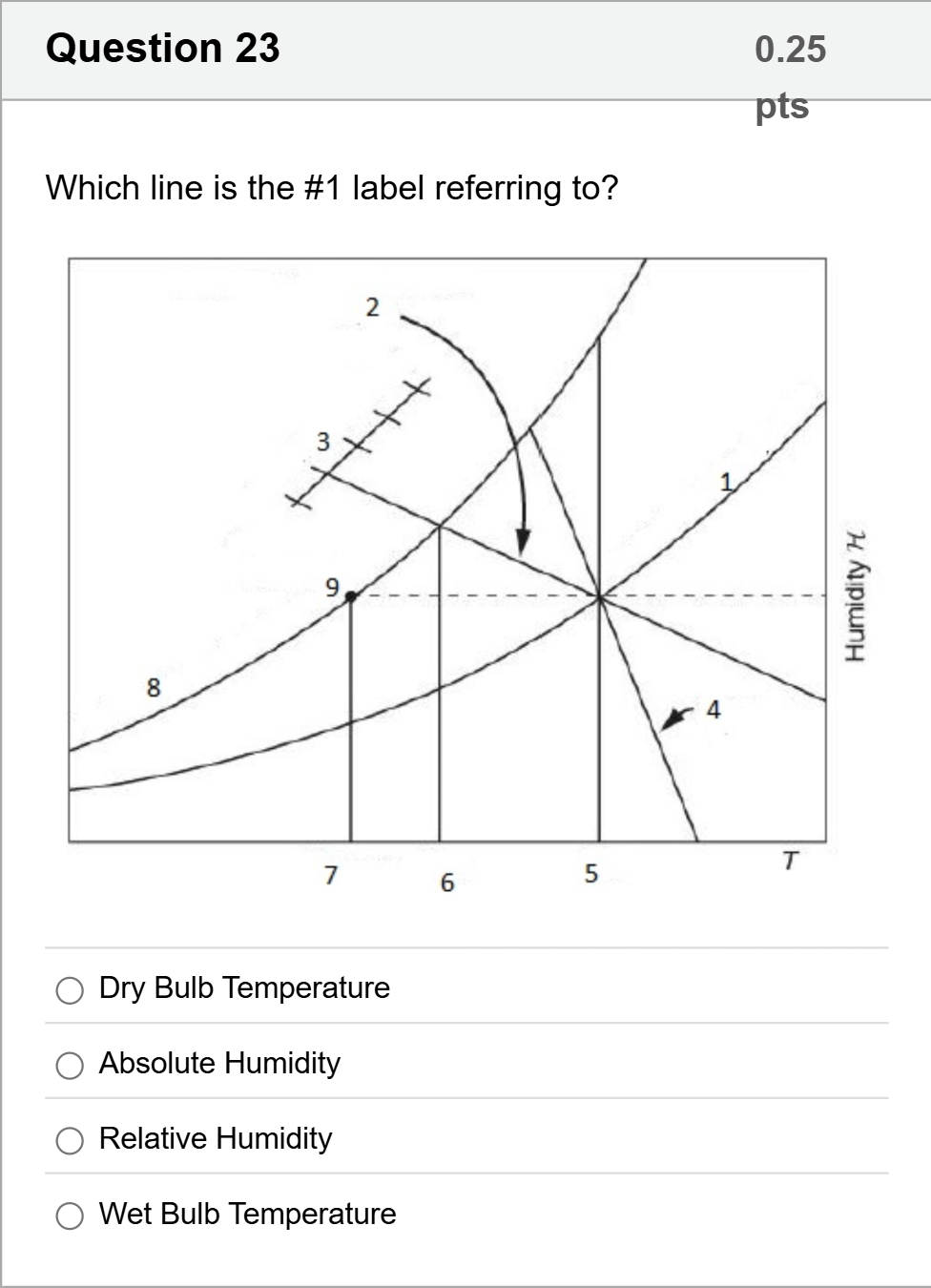

Which line is the #1 label referring to?

Question

BlackTom AI · Accepted Answer

The question asks which labeled line, specifically the one marked as #1, corresponds to in the given psychrometric chart.
Option 1: Dry Bulb Temperature
- On a psychrometric chart, the Dry Bulb Temperature (DBT) is typically plotted along the horizontal axis (or represented by horizontal grid lines corresponding to constant DBT). If line #1 runs in a direction consistent with these horizontal temperature delineations, it would be identifying the DBT family. In many charts, the DBT is the principal axis used to describe temperature and is often indicated by lines that align with the x-axis progression, making it a natural match for a line labeled #1 in this diagram.
Option 2: Absolute Humidity
- Absolute humidity is the mass of water vapor per unit volume of air and is usually represented by a vertical or near-vertical scale depending on chart conventions, or by isolines that correspond to specific moisture content. The #1 line in the figure appears to extend in a direction more aligned with temperature-related divisions rather than directly marking moisture content, so this option is unlikely.
Option 3: Relative Humidity
- Relative humidity (RH) is depicted on psychrometric charts by curved lines that typically slope upward and to the left or right from the bottom. These RH lines are not straight radial lines and do not generally run parallel to the main DBT direction. If line #1 were a curved RH line, its appearance would differ from a straight line, making this option suspect given the visual of line #1.
Option 4: Wet Bulb Temperature
- Wet Bulb Temperature (WBT) lines on psychrometric charts are typically diagonal lines that slope downward or upward depending on chart orientation and are closely tied to the enthalpy and humidity ratio relationship. If line #1 appeared as a line that follows a distinct diagonal pattern opposite to DBT lines, this might be a candidate. However, in many standard charts, WBT lines are not the primary straight set crossing the midregion, and the label #1 in this figure aligns more with the horizontal temperature indexing rather than a unique WBT trajectory.
In summary, examining the orientation and nature of line #1 relative to the axes and the common representations for each property on a psychrometric chart, the line that best matches the Dry Bulb Temperature family is the one labeled as #1. The other options describe properties that are either shown with curved lines, distinct vertical tendencies, or different diagonal orientations, which do not correspond as cleanly to the observed #1 line.

Environmental Design.B.Fa25 E 15.1 - Final Exam

Which line is the #1 label referring to?

View Explanation

Log in for full answers
