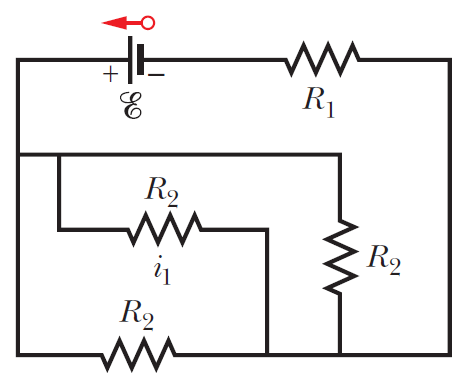

In Figure, R1=6.0ΩR_{1}=6.0 \Omega, R2=18.0ΩR_{2}=18.0 \Omega, and the ideal battery has emf ε=12.0V\varepsilon=12.0\rm{V}. What are the (a) size and (b) direction (left or right) of current i1i_{1}? (c) How much energy is dissipated by all four resistors in 1.00min1.00 \rm{min}?

Your answers:

(a) the size of the current i1i_{1}is [Fill in the blank],
A\rm{A}

(b) direction (left or right) of the current i1i_{1} is [Fill in the blank],

(c) the energy dissipated by all four resistors in 1.00min1.00 \rm{min} is [Fill in the blank],
J\rm{J}

Question

In Figure, R1=6.0ΩR_{1}=6.0 \Omega,  R2=18.0ΩR_{2}=18.0 \Omega, and the ideal battery has emf ε=12.0V\varepsilon=12.0\rm{V}. What are the (a) size and (b) direction (left or right) of current i1i_{1}? (c) How much energy is dissipated by all four resistors in 1.00min1.00 \rm{min}?

Your answers:

(a) the size of the current i1i_{1}is [Fill in the blank],
A\rm{A}

(b) direction (left or right) of the current i1i_{1} is [Fill in the blank],

(c) the energy dissipated by all four resistors in 1.00min1.00 \rm{min} is [Fill in the blank],
J\rm{J}
