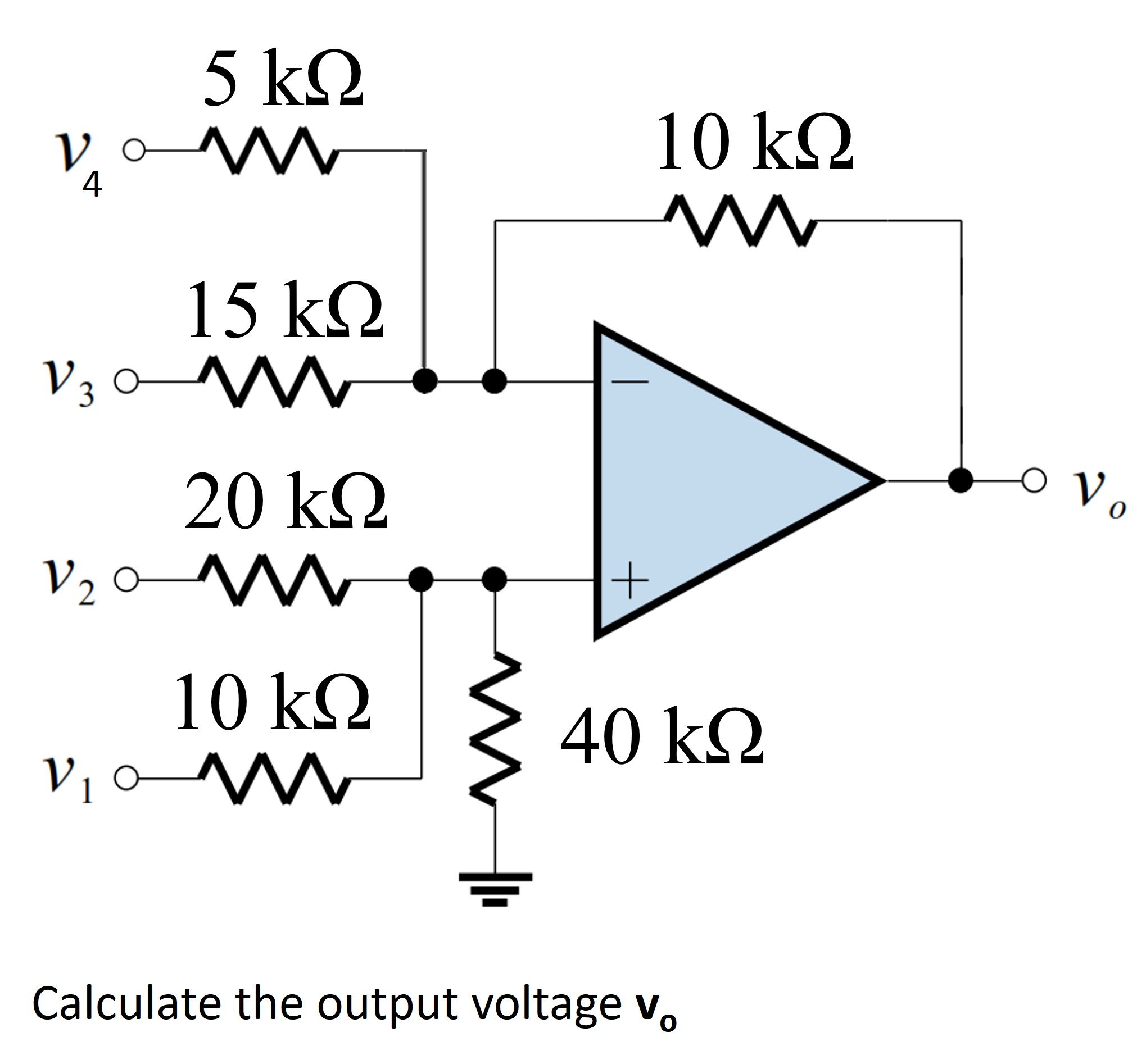

48520 Electronics and Circuits - Spring 2025 2025 Spring - Quiz 1

Single choice

Options

A.𝑣 𝑜 = − 21 𝑣 1 + 17 𝑣 2 + 12 𝑣 3 − 31 𝑣 4 17

B.𝑣 𝑜 = 20 𝑣 1 + 14 𝑣 2 − 18 𝑣 3 − 22 𝑣 4 19

C.𝑣 𝑜 = 44 𝑣 1 + 22 𝑣 2 − 14 𝑣 3 − 42 𝑣 4 21

D.𝑣 𝑜 = 24 𝑣 1 − 34 𝑣 2 + 14 𝑣 3 − 18 𝑣 4 4

E.𝑣 𝑜 = 8 𝑣 1 + 13 𝑣 2 − 23 𝑣 3 − 11 𝑣 4 7

F.𝑣 𝑜 = 42 𝑣 1 − 33 𝑣 2 + 23 𝑣 3 − 51 𝑣 4 35

View Explanation

Verified Answer

Please login to view

Step-by-Step Analysis

We start by identifying the circuit relationships at the op-amp inputs. The configuration is an ideal op-amp with negative feedback, so the voltage at the inverting input equals the voltage at the noninverting input (v- = v+). First, analyze the noninverting input network. The node at v+ is connected to v1 through a 10 kΩ resistor, to v2 through a 20 kΩ resistor, and to ground through ......Login to view full explanation
