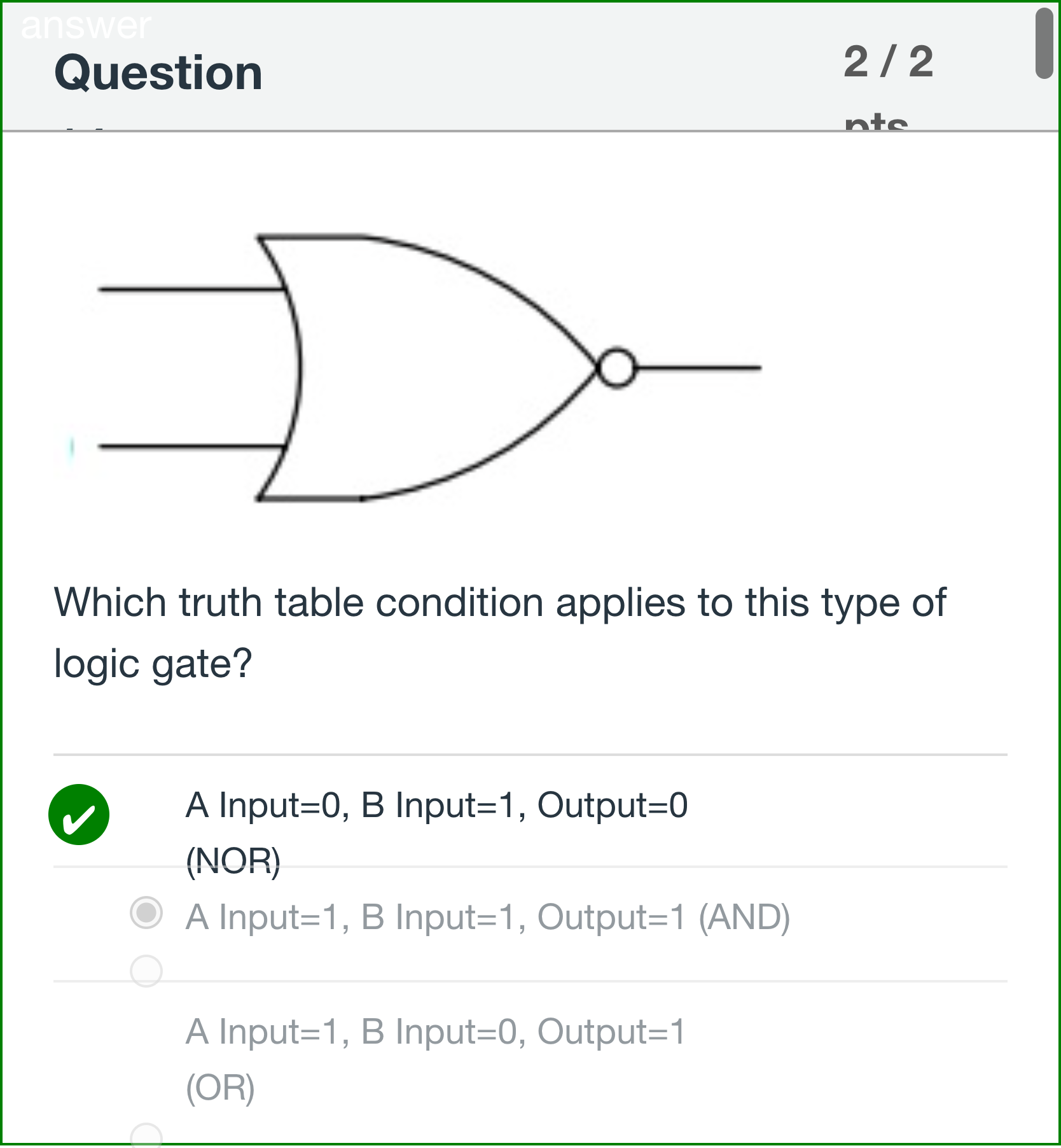

Which truth table condition applies to this type of logic gate?

Question

BlackTom AI · Accepted Answer

The question asks which truth table condition applies to the shown logic gate, which is a NOR gate (a NOT-OR gate).
First, recall how a NOR gate behaves: it outputs a 1 only when both inputs are 0; otherwise it outputs 0. In other words, Output = NOT(A OR B).
Now evaluate the given input scenario: A = 0 and B = 1.
- For a NOR gate: A OR B = 0 OR 1 = 1, then NOT(1) = 0, so the output should be 0. This matches the statement: Input=0, B Input=1, Output=0 (NOR).
- If we compared with an AND gate: A AND B = 0 AND 1 = 0, which would yield Output=0 as well, but the gate in the diagram is not AND; it is NOR (as indicated by the small circle at the output).
- If we compared with an OR gate: A OR B = 0 OR 1 = 1, so Output would be 1, not 0, which contradicts the given output.
- If we considered any other gate variant (like a NOT gate after OR, or a NOT gate after AND) the diagram explicitly shows the gate shape of a NOR gate, including the inversion circle at the output, confirming the NOR behavior.
Therefore, the truth-table condition described by the statement A Input=0, B Input=1, Output=0 corresponds to the NOR gate, and reflects the correct interpretation of A=0, B=1 leading to Output=0 for NOR.
