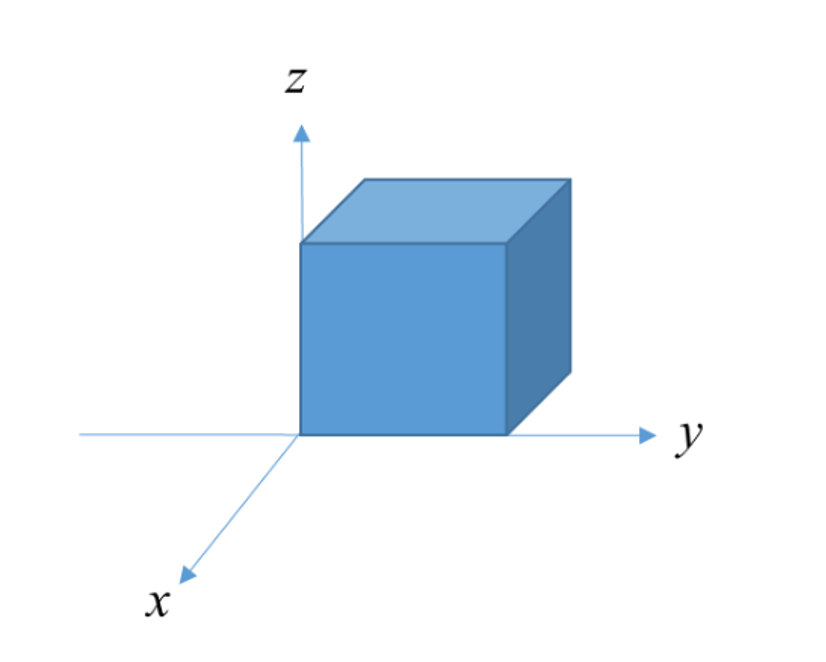

The cube shown in the figure has edge length 1.6 m. There is a non-uniform electric field in the region given by
𝐸
→
=
8
𝑖
^
+
(
𝑎
𝑦
+
𝑏
)
𝑗
^
+
𝑐
𝑘
^
N/C, where a=2.7 and b=1.6. Find the total charge inside the cube. The answer’s unit is pC.

Question

The cube shown in the figure has edge length 1.6 m. There is a non-uniform electric field in the region given by
𝐸
→
=
8
𝑖
^
+
(
𝑎
𝑦
+
𝑏
)
𝑗
^
+
𝑐
𝑘
^
 N/C, where a=2.7 and b=1.6. Find the total charge inside the cube. The answer’s unit is pC.

BlackTom AI · Accepted Answer

To begin, we identify the geometry and the field components given: a cube of edge length L = 1.6 m at the origin with the electric field E = <8, a y + b, c> N/C, where a = 2.7 and b = 1.6, c is not specified but appears only in the z-component.

Next, apply Gauss's law in integral form: ∮ E · dA = Q_enclosed / ε0. The cube has faces perpendicular to x, y, and z. We compute the net flux through all six faces.

- Flux through faces perpendicular to x: Ex = 8 is constant. The two x-faces are at x = 0 and x = L, with normals ±x̂. The flux through the face at x = L is Ex · A = 8 · L^2, and through the face at x = 0 is −8 · L^2. Summing gives zero net flux from the x-faces because the two contributions cancel: 8L^2 − 8L^2 = 0.

- Flux through faces perpendicular to z: Ez = c is constant. The two z-faces at z = 0 and z = L have normals ±ẑ. Each face contributes c · L^2 or −c · L^2, and the sum is again zero: cL^2 − cL^2 = 0. So no net flux from the z-faces, regardless of the value of c.

- Flux through faces perpendicular to y: Ey = a y + b depends on y. The two faces are at y = 0 and y = L with normals +ȳ and −ȳ, respectively. The flux through y = L is Ey(y = L) · L^2 = (aL + b) L^2. The flux through y = 0 is Ey(y = 0) · L^2 = b · L^2 but with a negative sign since the normal points in −ȳ for that face, giving −bL^2. The net flux from the y-faces is [(aL + b) − b] L^2 = (aL) L^2 = a L^3.

Thus, the total net electric flux through the cube is Φ = a L^3, since the x- and z-face contributions cancel out, leaving only the y-direction contribution.

Now relate flux to enclosed charge via Gauss's law: Q = ε0 · Φ = ε0 · a · L^3.

Plug in the numbers: L^3 = (1.6 m)^3 = 4.096 m^3. Therefore a · L^3 = 2.7 × 4.096 ≈ 11.0592. Multiplying by ε0 ≈ 8.854187817×10^−12 F/m gives Q ≈ 11.0592 × 8.854×10^−12 C ≈ 9.80×10^−11 C.

Converting to picocoulombs: 9.80×10^−11 C = 98 pC. The result matches the provided answer of 98 pC.

Note on the role of each component: the Ex contribution cancels because flux through opposite x-faces is equal and opposite; the Ez contribution cancels for the same reason on the z-faces; only Ey contributes to a net flux due to its linear dependence on y across the cube’s extent, leading to a net flux proportional to a and L^3.

202502PHY1202 Assignment 4 Gauss Law - due February 23, 2025 11:59 pm.

The cube shown in the figure has edge length 1.6 m. There is a non-uniform electric field in the region given by 𝐸 → = 8 𝑖 ^ + ( 𝑎 𝑦 + 𝑏 ) 𝑗 ^ + 𝑐 𝑘 ^ N/C, where a=2.7 and b=1.6. Find the total charge inside the cube. The answer’s unit is pC.
