ABPL20033_2025_SM2 Quiz Week 6

Matching

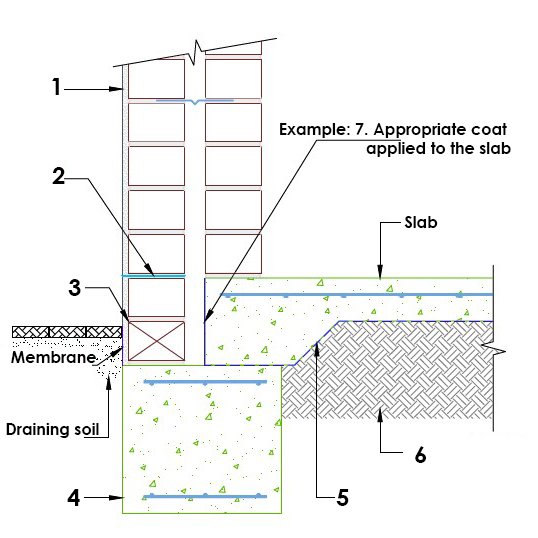

In this section, match each component indicated with a number (from 1 to 6) and an arrow with its correct annotation. Example: 7 would be matched with Appropriate coat applied to the slab. 1: 1 2: 2 3: 3 4: 4 5: 5 6: 6

Options

A.Weep holes at 1200 mm max centres

B.Wool insulation

C.Compacted fill

D.Vertical timber cladding

E.Waterproof membrane

F.Damp Proof Course (DPC)

G.Horizontal battens

H.Strip footing

I.Render

J.Lintel

K.Wood packing to the door head

View Explanation

Verified Answer

Please login to view

Step-by-Step Analysis

We start by restating the task: we are matching each numbered component (1 to 6) with its correct annotation from the provided options. The available correct-match list in the answer is: 1) Weep holes at 1200 mm max centres, 2) Damp Proof Course (DPC), 3) Waterproof membrane, 4) Compacted fill, 5) Strip footing, 6) Slab. The diagram shows a wall-footing-slab assembly with labeled elements such as a membrane at the wall foundation, a damp-proof line, a drainage zone, and the concrete slab extending to the ground. Now we analyze each numbered item and its correct match, then explain why the other options are not correct for that same number. Option 1 analysis: - Correct match: Weep holes at 1200 mm max centres. In many wall foundations, weep holes are placed at regular intervals to allow drainage of water from the footing or cavity spaces. Among the available annotations, this is the one that corresponds to the drainage/ventilation feature at the base of the wall that permits moisture to escape. - Why the other opt......Login to view full explanation
