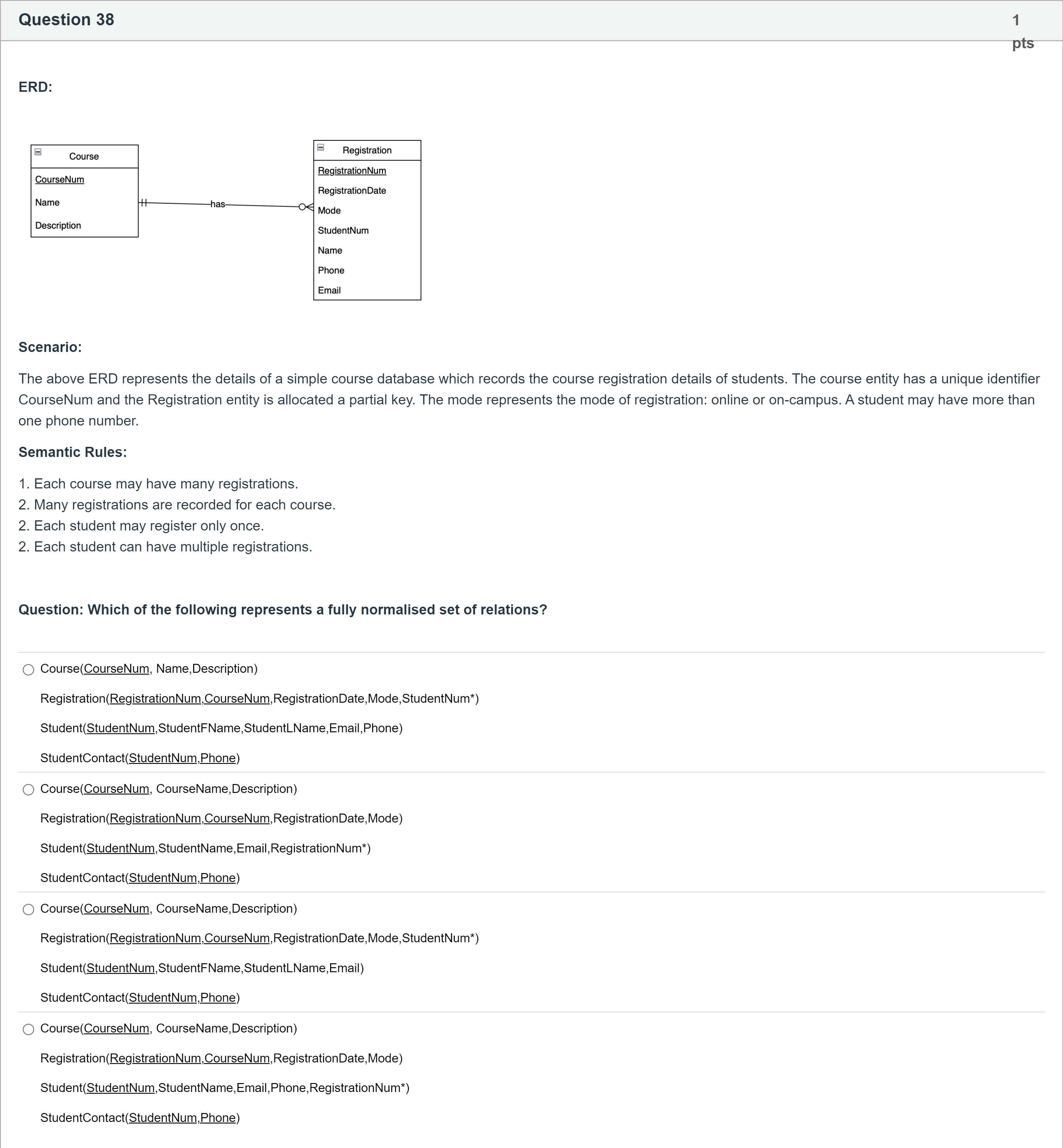

ERD:

Scenario:

The above ERD represents the details of a simple course database which records the course registration details of students. The course entity has a unique identifier CourseNum and the Registration entity is allocated a partial key. The mode represents the mode of registration: online or on-campus. A student may have more than one phone number.

Semantic Rules:

1. Each course may have many registrations.
2. Many registrations are recorded for each course.
2. Each student may register only once.
2. Each student can have multiple registrations.

Question: Which of the following represents a fully normalised set of relations?

Question

ERD:

Scenario:

The above ERD represents the details of a simple course database which records the course registration details of students. The course entity has a unique identifier CourseNum and the Registration entity is allocated a partial key. The mode represents the mode of registration: online or on-campus. A student may have more than one phone number.

Semantic Rules:

1. Each course may have many registrations.
2. Many registrations are recorded for each course.
2. Each student may register only once.
2. Each student can have multiple registrations.

Question: Which of the following represents a fully normalised set of relations?

BlackTom AI · Accepted Answer

Examining the given scenario and semantic rules helps identify what a fully normalized schema should look like. Here are the options analyzed in turn.
Option 1:
- Course is defined as (CourseNum, Name, Description) which is fine. Registration includes (RegistrationNum, CourseNum, RegistrationDate, Mode, StudentNum*), which correctly models the relationship to Course and Student. However, Student is defined as (StudentNum, StudentFName, StudentLName, Email, Phone) and there is a separate StudentContact(StudentNum, Phone). This puts Phone as both an attribute of Student and as a separate relation, which is inconsistent for normalization. A multivalued phone implies a separate relation is needed, but the presence of Phone in both relations indicates redundancy and potential anomalies. Overall, this option does not represent a properly normalized set of relations because Phone should be stored only in a separate multivalued relation (StudentContact).
Option 2:
- Course is fine with (CourseNum, CourseName, Description). Registration is (RegistrationNum, CourseNum, RegistrationDate, Mode) but lacks a direct link to the Student; there is no StudentNum in Registration, so the relationship between a student and their registrations is incomplete. The Student relation (StudentNum, StudentName, Email, RegistrationNum*) incorrectly ties RegistrationNum to Student as a multivalued attribute, which is not how 1-to-many relationships are modeled in normalization. This option fails to capture the intended connections and violates normalization by embedding a registration reference in Student.
Option 3:
- Course(CourseNum, CourseName, Description) is appropriate. Registration(RegistrationNum, CourseNum, RegistrationDate, Mode, StudentNum*) correctly includes a foreign key to Course and to Student, and uses RegistrationNum as a primary key. Student(StudentNum, StudentFName, StudentLName, Email) properly stores student details with a single key. StudentContact(StudentNum, Phone) cleanly handles the one-to-many phone numbers per student without duplicating Phone in Student. This aligns with the stated rules: a student can have multiple registrations and multiple phones, and a course can have many registrations. Overall, this option appears to be fully normalized.
Option 4:
- Course is fine. Registration(RegistrationNum, CourseNum, RegistrationDate, Mode) is okay but lacks a StudentNum in Registration to link a registration to a student, breaking the registration-to-student relationship. Student(StudentNum, StudentName, Email, Phone, RegistrationNum*) places RegistrationNum as a multivalued or optional attribute inside Student, which is not appropriate for a 1-to-many relationship and introduces redundancy. StudentContact(StudentNum, Phone) would still be present, but the core issue remains: Registration is not properly linked to the Student, violating normalization rules.
In summary, Option 3 provides the correct structure: Course with CourseNum, CourseName, Description; Registration with RegistrationNum, CourseNum, RegistrationDate, Mode, and StudentNum*; Student with StudentNum, StudentFName, StudentLName, Email; and StudentContact with (StudentNum, Phone). The other options either misplace Phone (breaking 4NF-like distinctions), fail to represent the student-registration linkage, or introduce redundant attributes.
