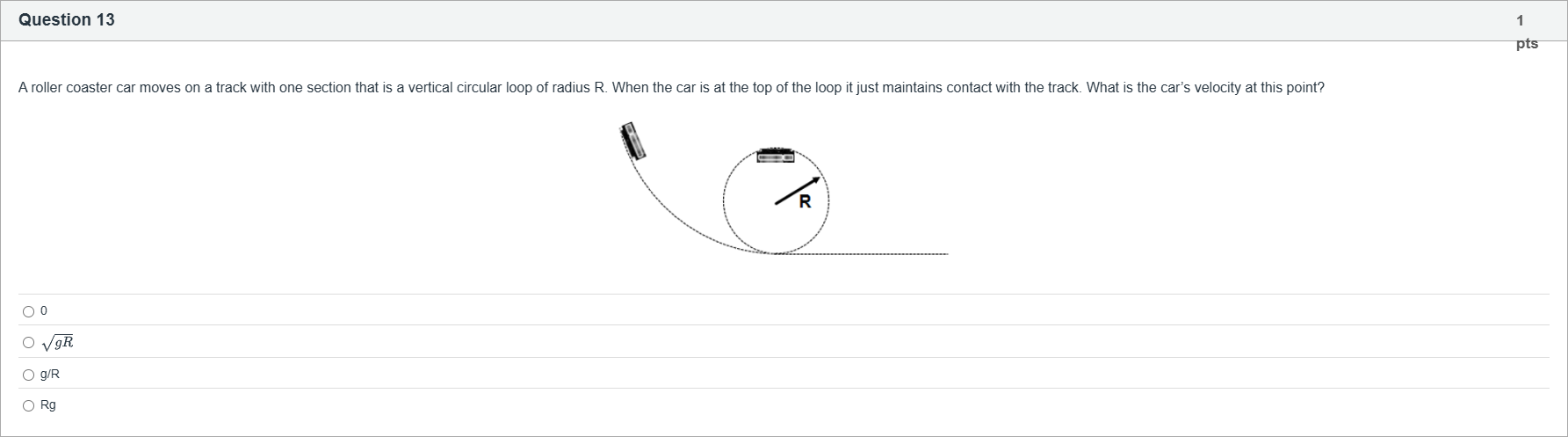

A roller coaster car moves on a track with one section that is a vertical circular loop of radius R. When the car is at the top of the loop it just maintains contact with the track. What is the car’s velocity at this point?

Question

BlackTom AI · Accepted Answer

Question restatement: A roller coaster car moves along a track that includes a vertical circular loop of radius R. At the top of the loop, the car just maintains contact with the track. What is the car’s velocity at this point?

Option 1: 0. This would imply no motion, which cannot be the case if the car is at the top of the loop and just maintaining contact; gravity alone would not provide a static condition for motion around a loop. Therefore this is incorrect.

Option 2: √(gR). This matches the standard condition for a mass in circular motion at the top of a vertical loop when the normal force goes to zero (just maintaining contact). At the top, the required centripetal acceleration is v^2/R directed downward. The only force providing this inward acceleration (with N = 0) is the weight mg acting downward, so m v^2 / R = m g, giving v^2 = gR and hence v = √(gR). This is the correct understanding of the contact condition.

Option 3: g/R. This has the wrong dimensional form for velocity. g has units of m/s^2 and R has units of m, so g/R would have units of 1/s^2 times sqrt(m) re-evaluations, not velocity. It misinterprets the relation between forces and motion required for circular motion; thus incorrect.

Option 4: Rg. This is simply g multiplied by R, which yields units of m^2/s^2, not velocity. It confuses the expression for v^2 with v, and does not satisfy the centripetal condition v^2/R = g when N = 0. Therefore incorrect.

Summary: The only option consistent with the physics of a mass undergoing circular motion at the top of a vertical loop with zero normal force is v = √(gR); the other choices fail due to incorrect dimensional analysis or incorrect physical reasoning about the forces and motion at the top.

SPHY001 Practice Quiz - Unit 06 | LA046

A roller coaster car moves on a track with one section that is a vertical circular loop of radius R. When the car is at the top of the loop it just maintains contact with the track. What is the car’s velocity at this point?

View Explanation

Log in for full answers

Similar Questions

A coin is placed on a rotating disc whose angular velocity is 1 rev/s. If the coefficient of static friction between the coin and the disc is 0.6 what is the maximum distance from the center of the disc that the coin can be placed without it slipping off?

A coin is placed on a disk that is rotating at 2rev/s. If the coefficient of static friction between the coin and the disc is 0.6 what is the maximum distance from the center of the disc that the coin can be placed without it slipping off?

The diagram below shows a 3.8 kg object being spun around in a circle from a 1.0 m long massless string.The angle [math: θ] \theta is 26.8 degrees.Determine the magnitude of the tension (N) in the string.Give your answer correct to 2 decimal places without units.

A pilot performs a vertical manoeuvre around a circle with a radius R. Which of the following is true about the pilot’s apparent weight?

An object is in uniform circular motion. Identify the correct statement(s). (1) Its acceleration is constant. (2) Its radial acceleration component is constant in magnitude. (3) Its tangential acceleration component is non-zero and constant in magnitude.

A child is sitting on the outer edge of a merry-go-round that is 10 m in diameter. If the merry-go-round makes 5 rev/min, what is the velocity of the child in m/s?

A pilot performs a vertical manoeuvre around a circle with a radius R. Which of the following is true about the pilot’s apparent weight?
